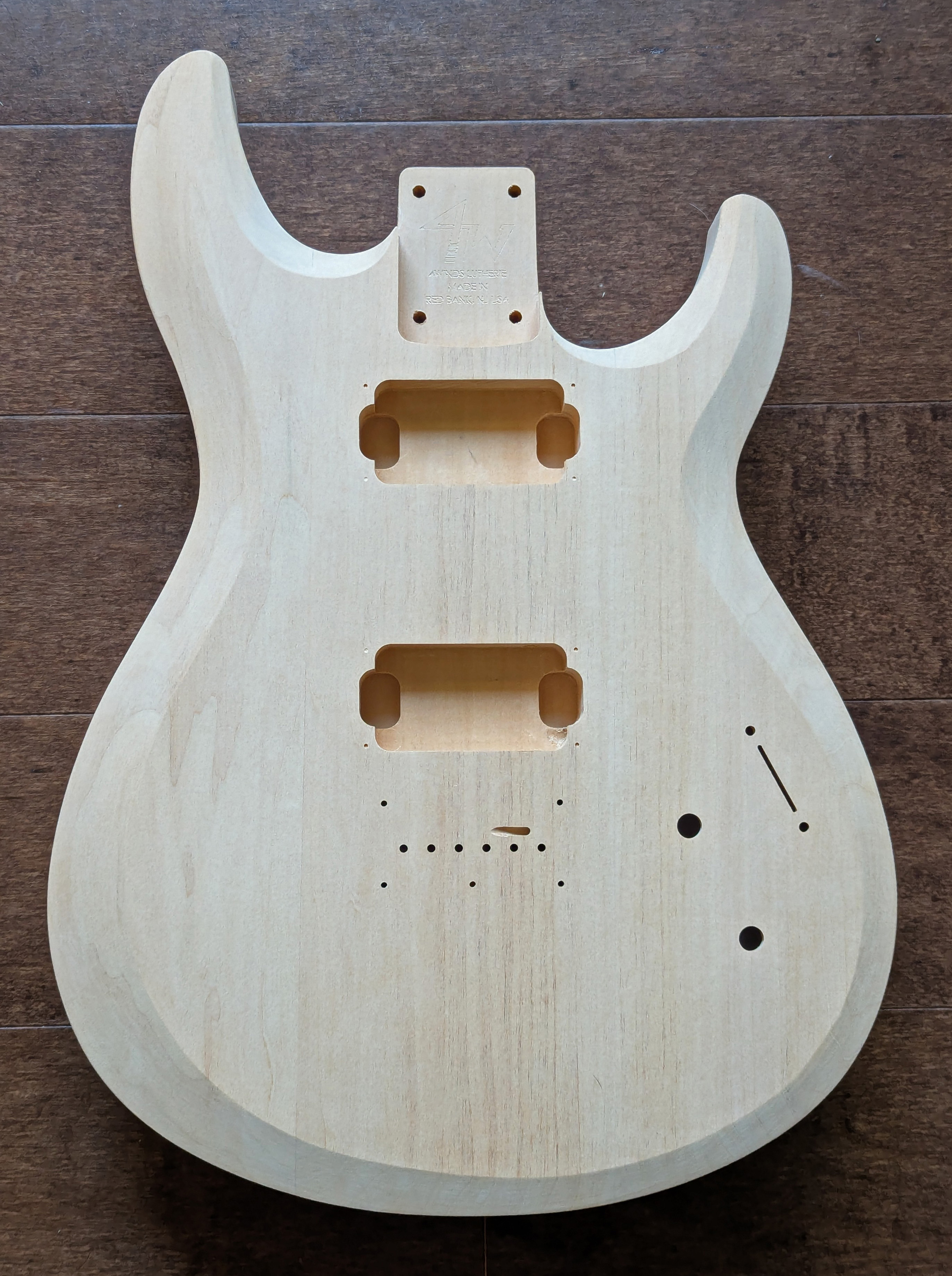

N2 - Navesink Double Cutaway - Hardtail or Vibrato

Named for the river thats runs along the north edge of Red Bank, NJ to the Atlantic Ocean. Available in several configurations, most commonly with signature front and back matching bevels, large control cavity, blade switch and 2 pots.

Sold Bodies

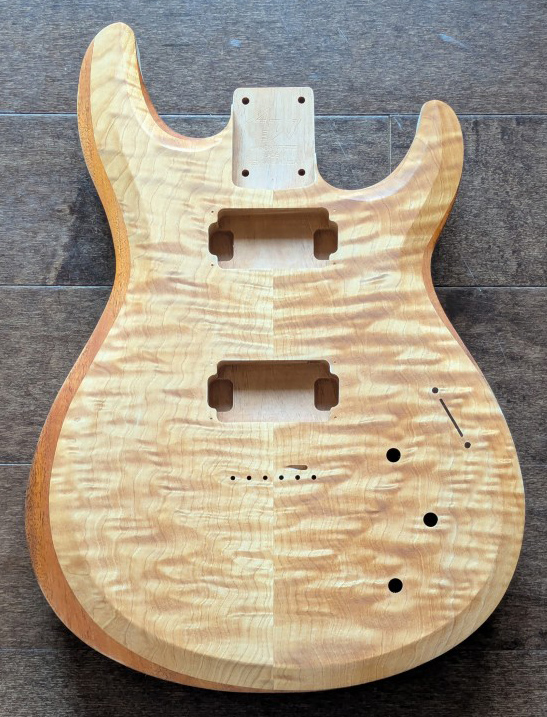

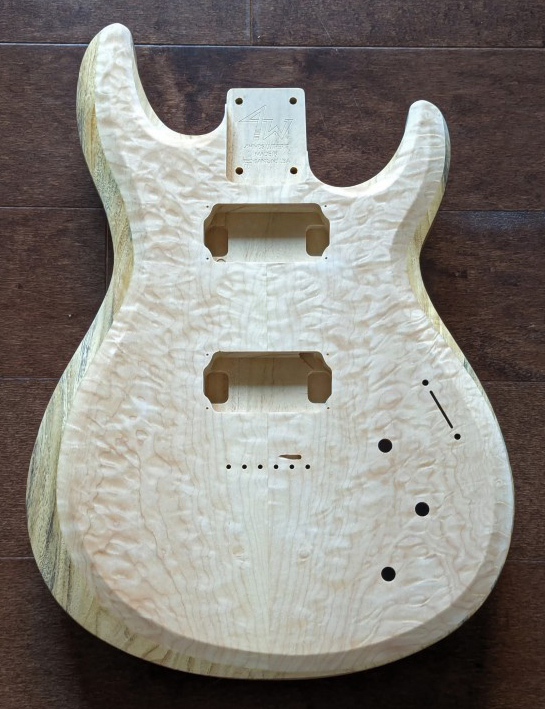

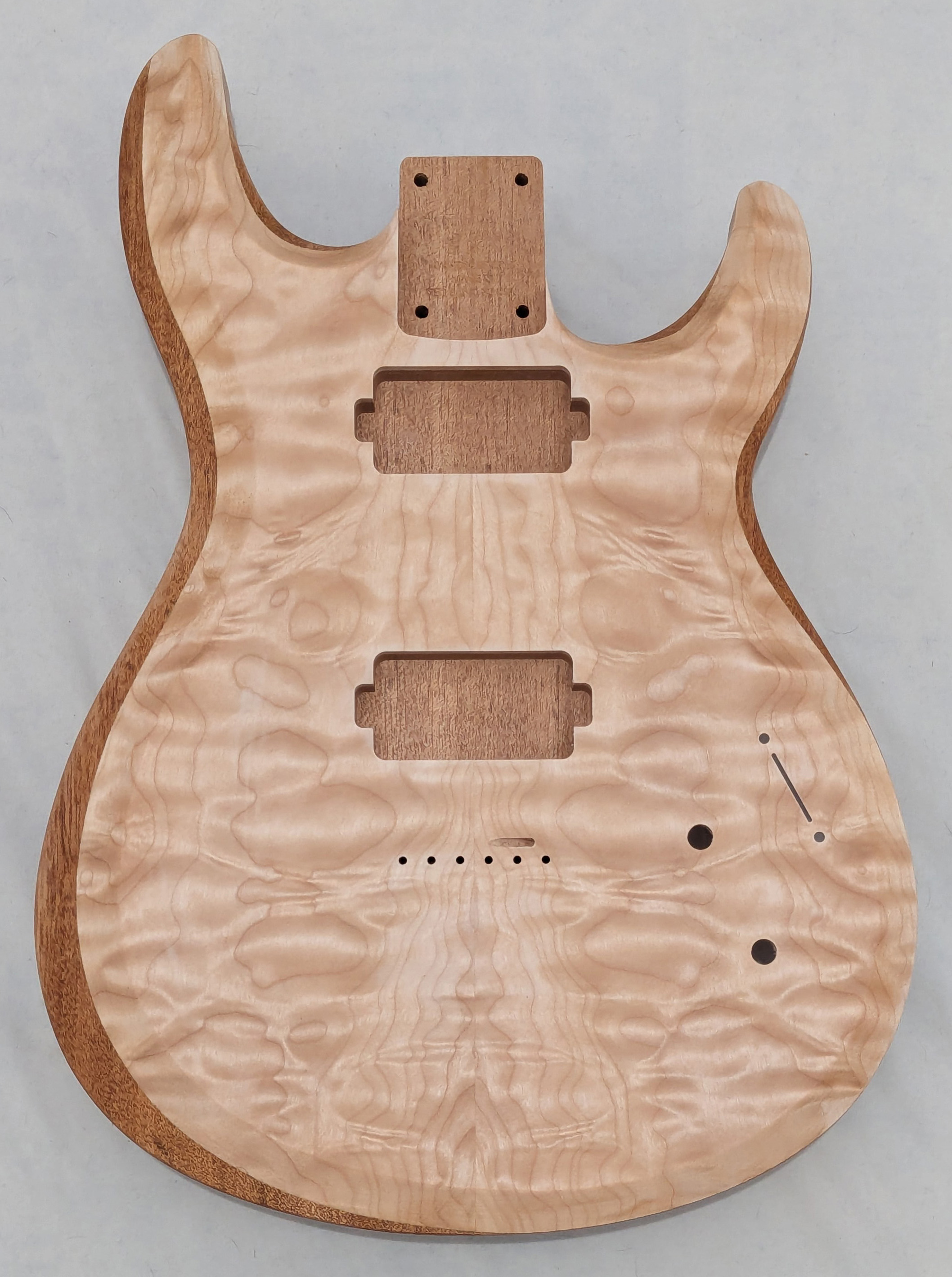

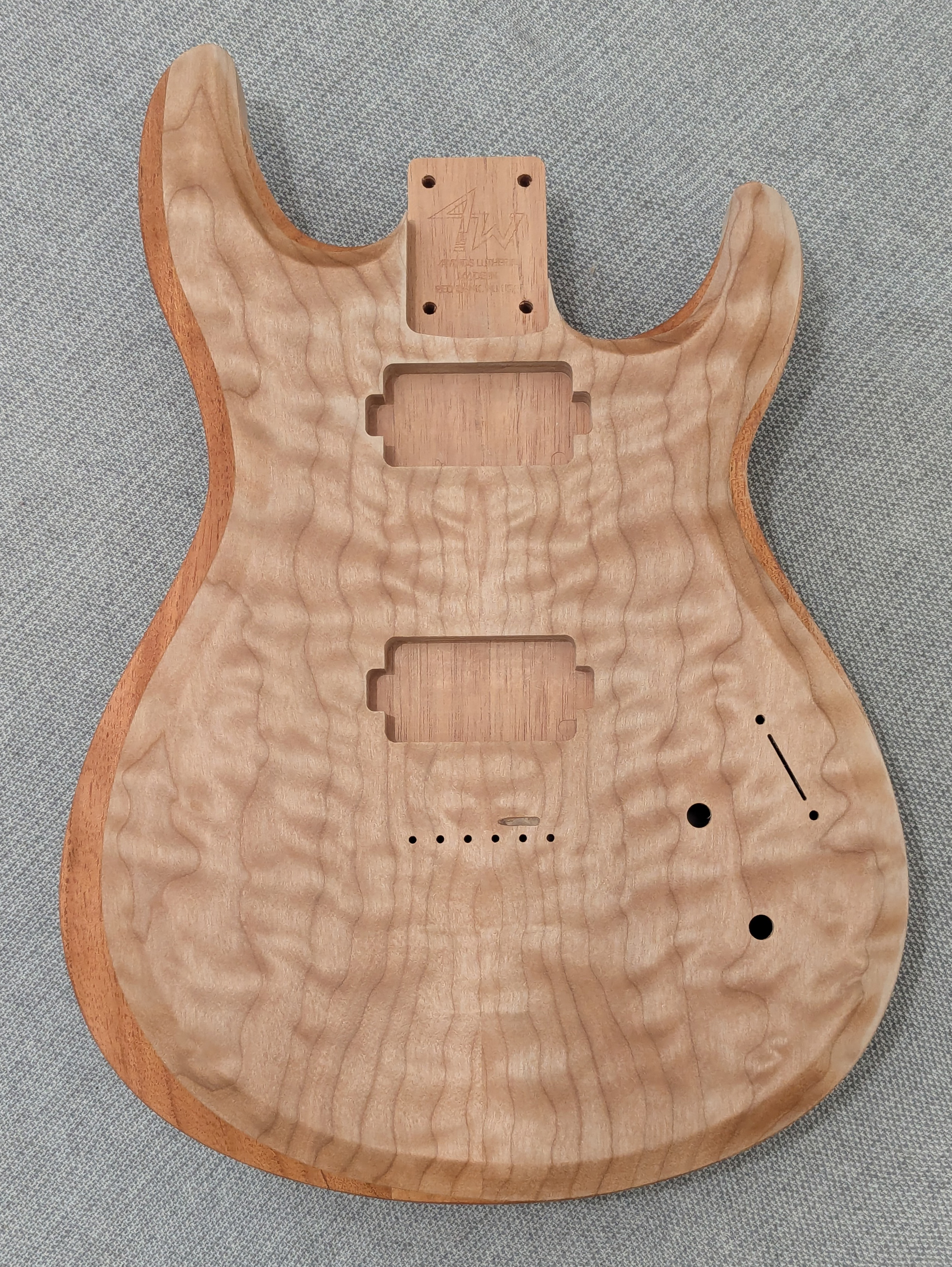

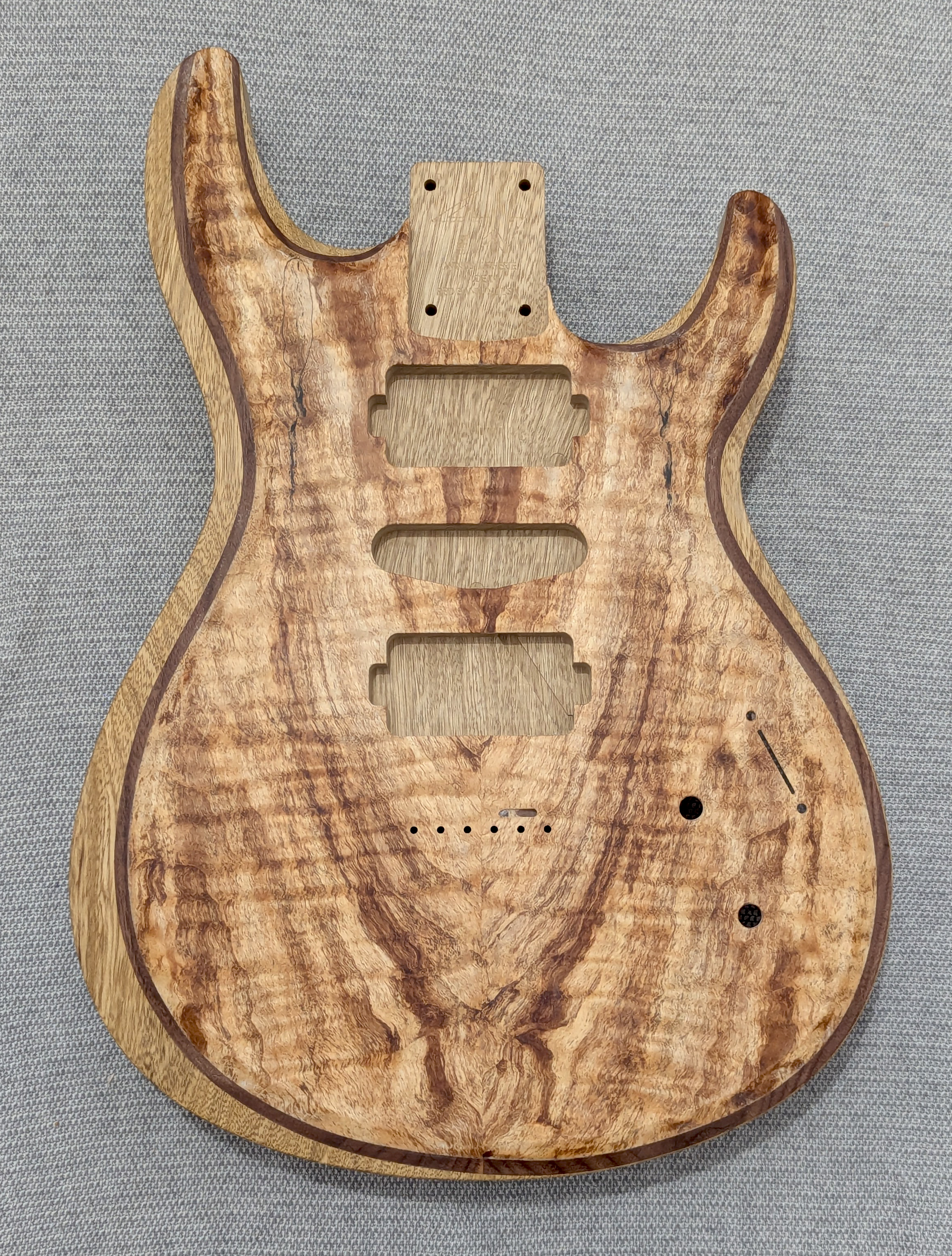

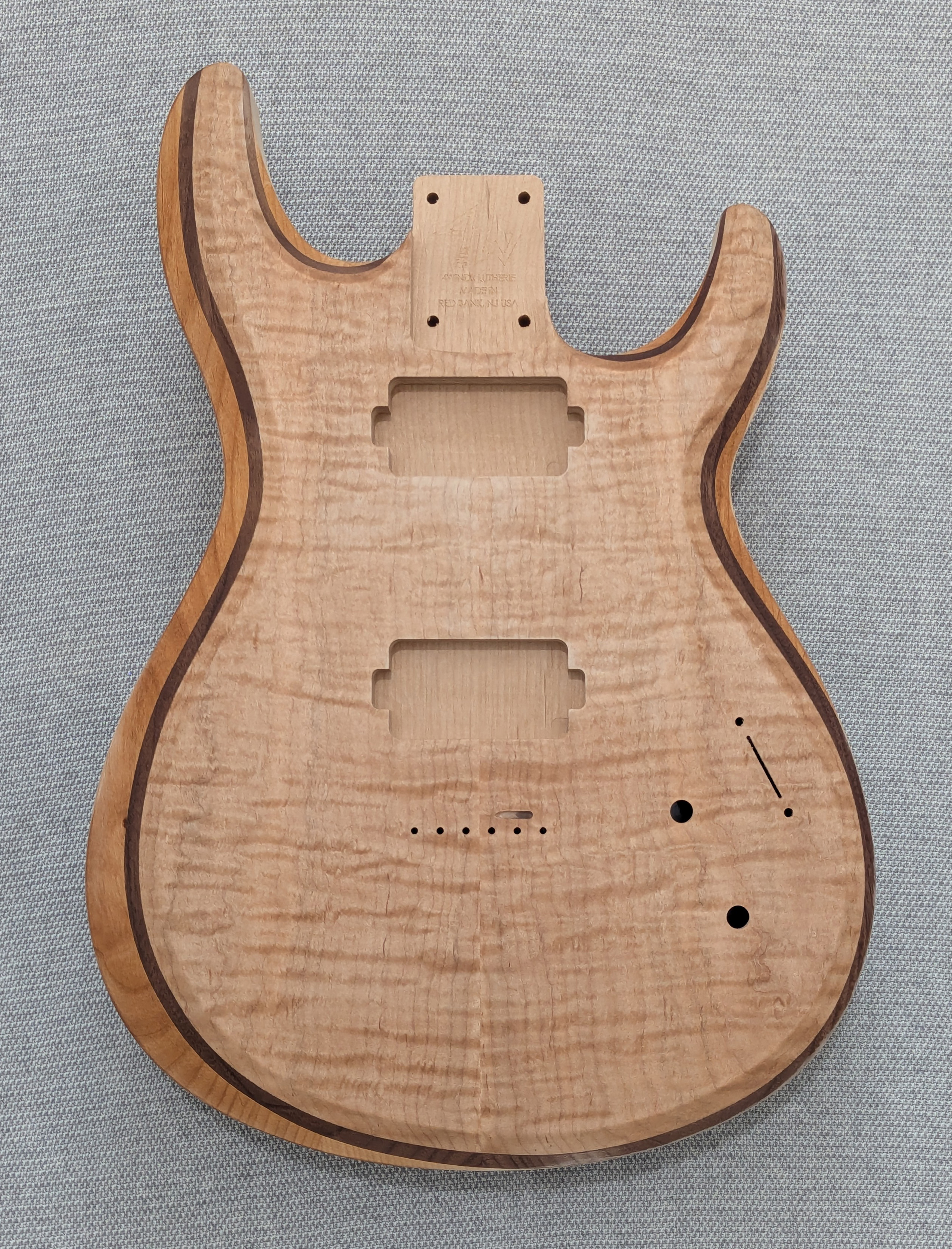

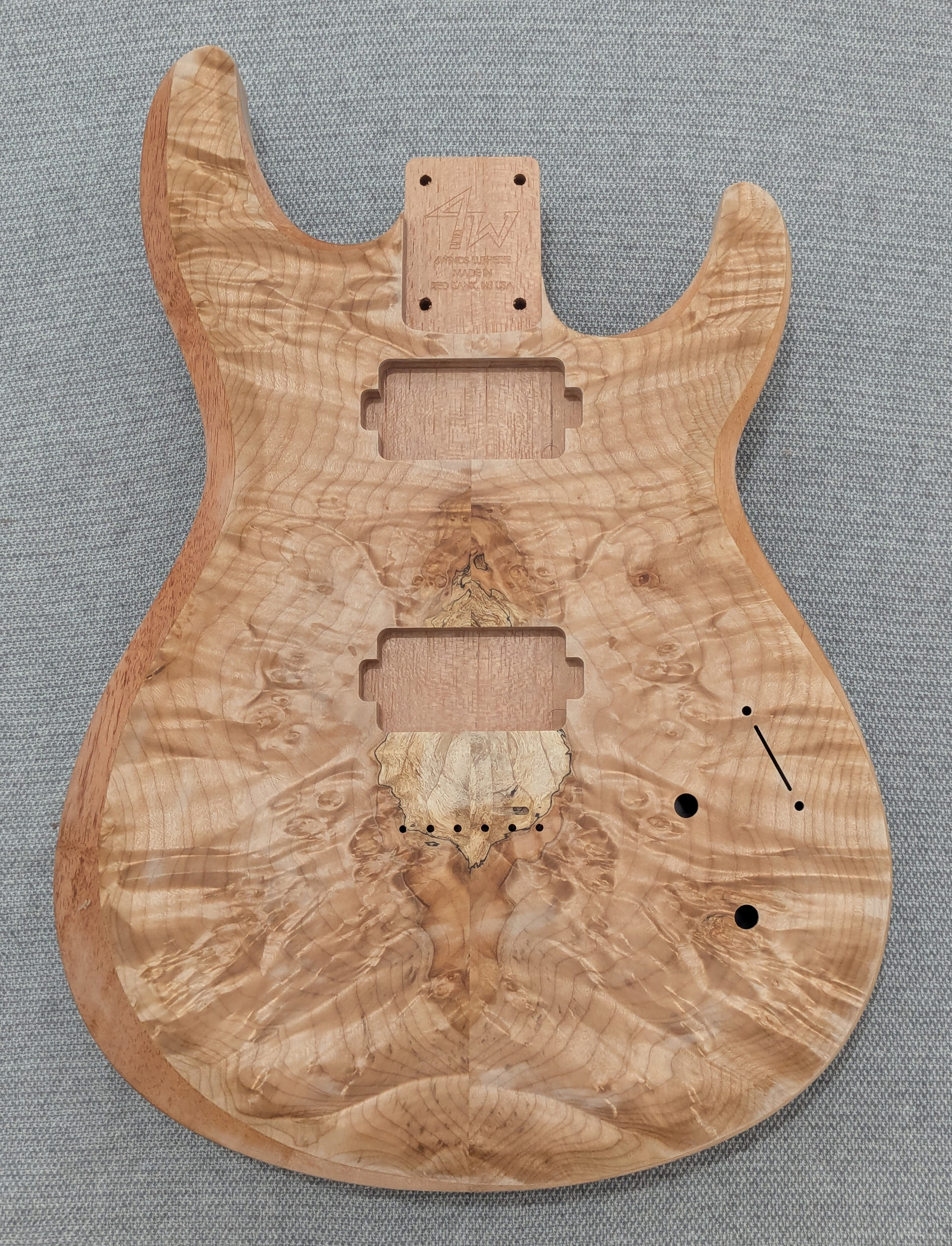

Laminate Tops

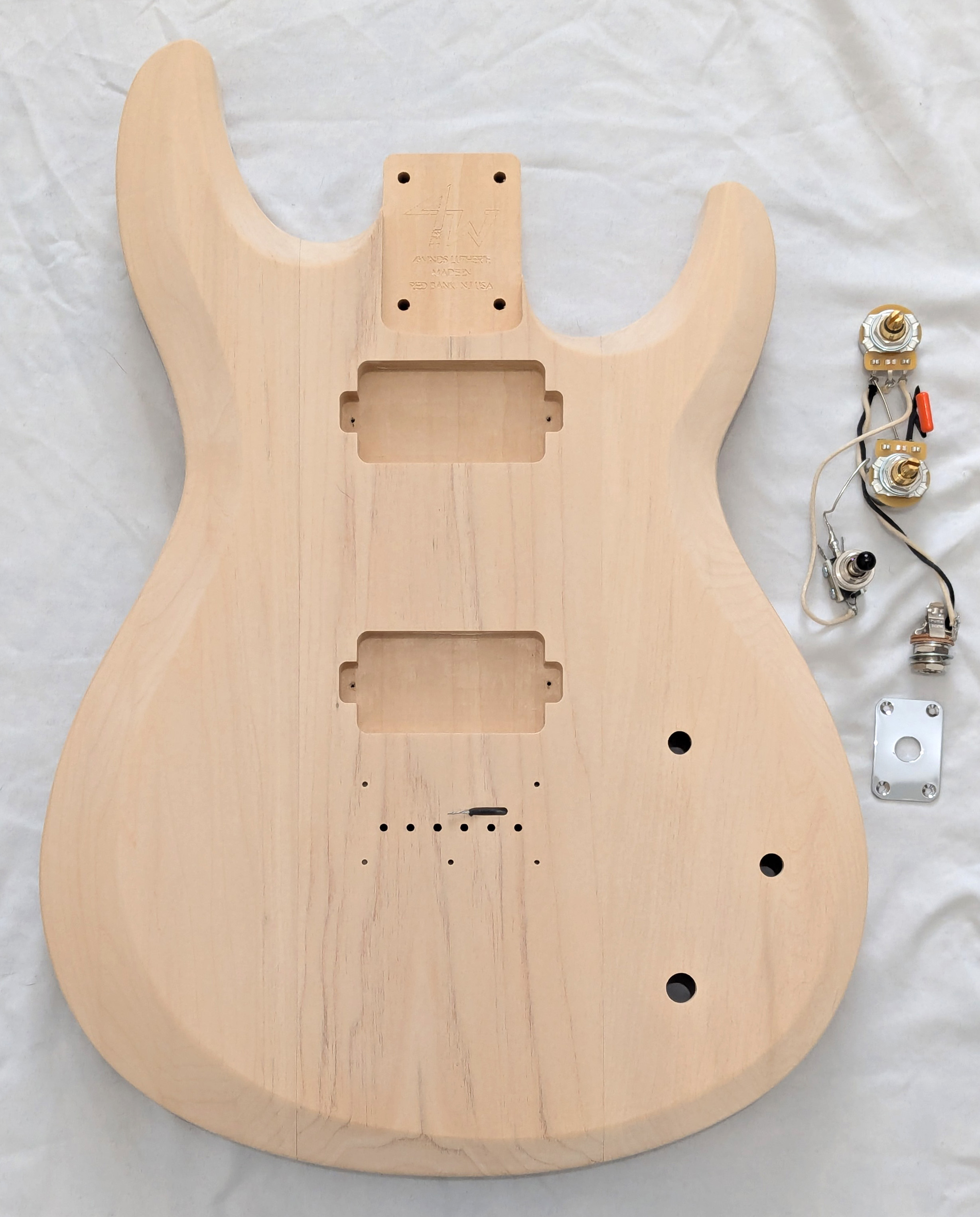

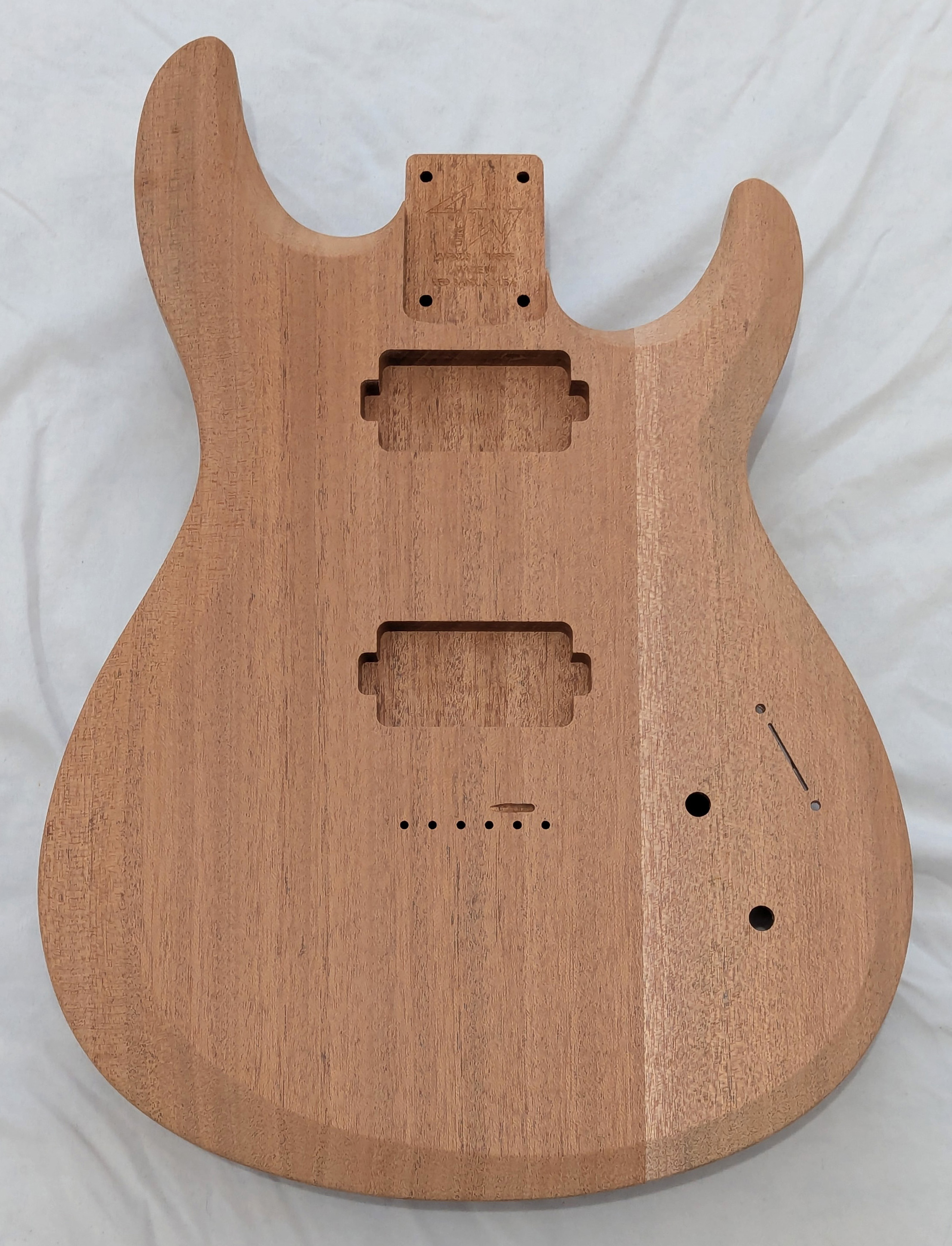

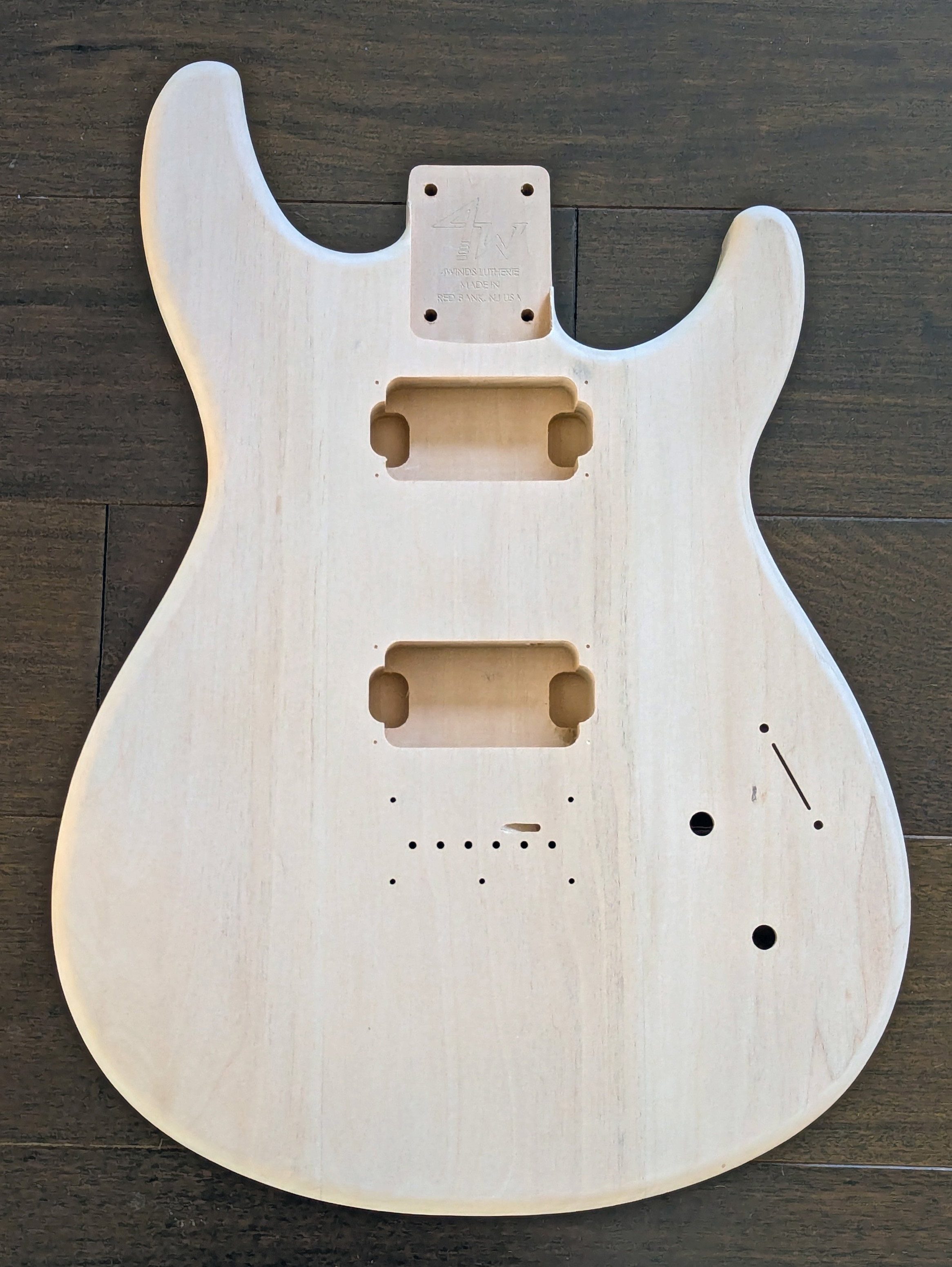

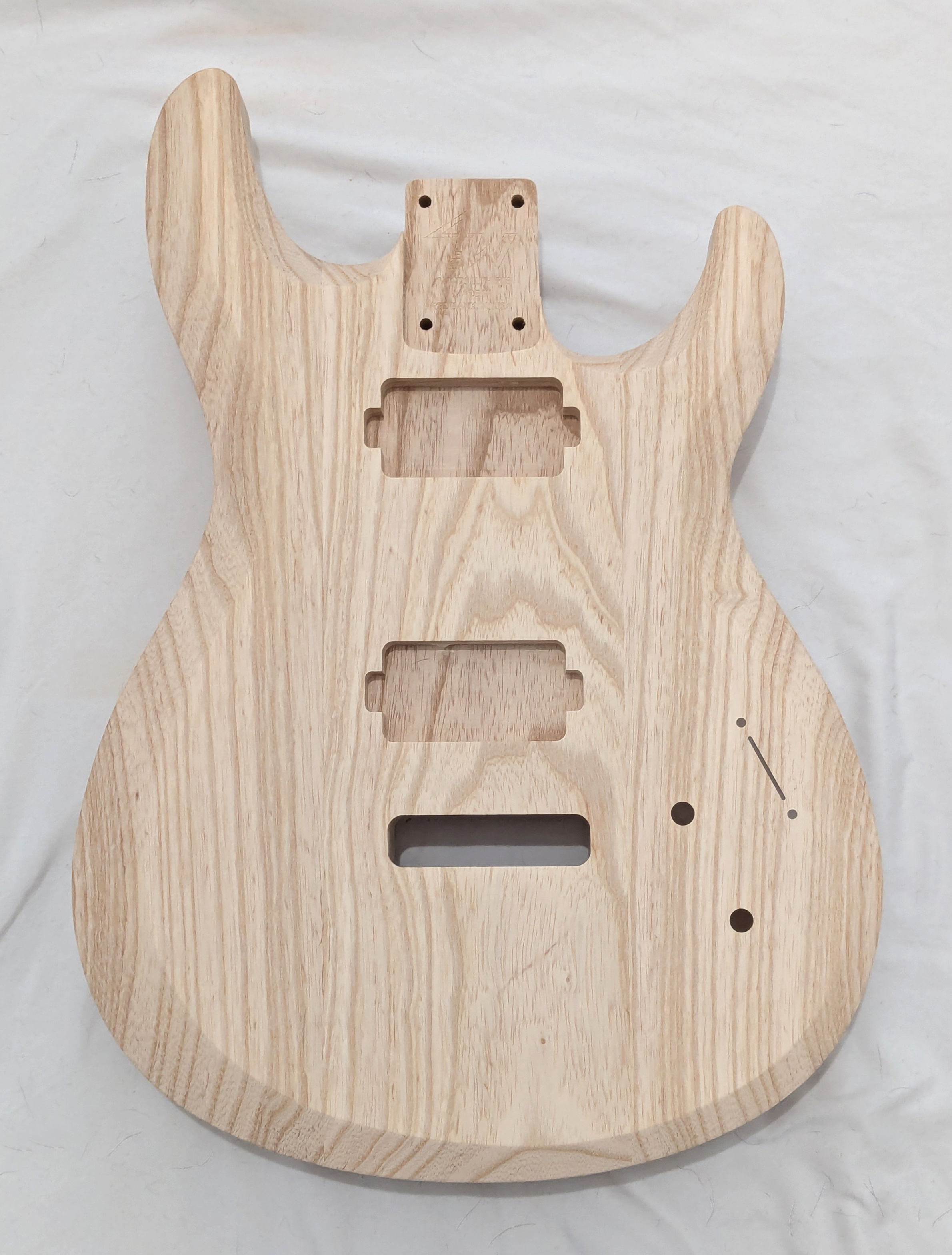

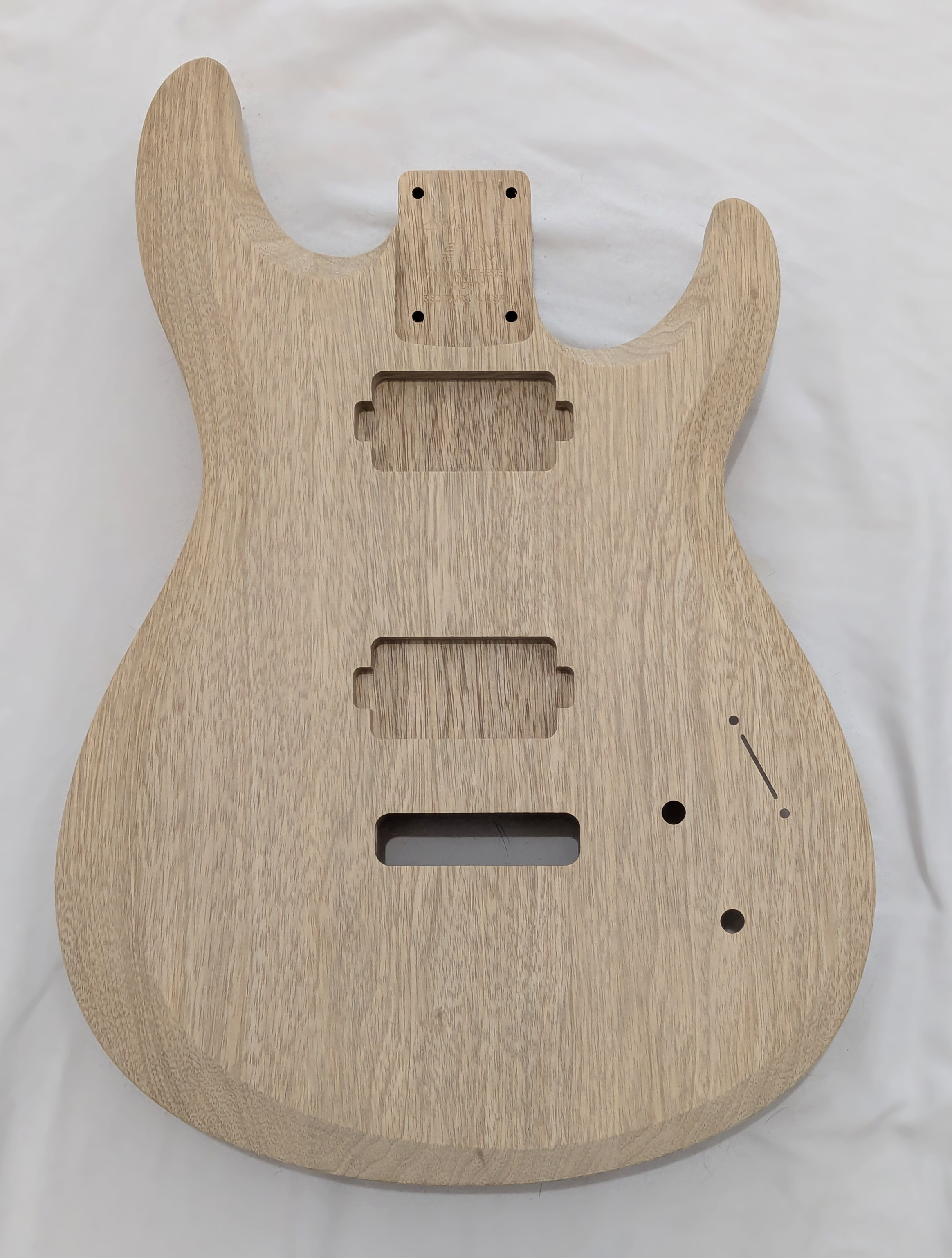

Solidbodies

Features & Currently Available Options

Construction: Solidbody, Laminate Top, or Mutli-layer laminate top
• Chambers (Weight Relief)
1-3/4 thick
Neck Pocket: Standard 4 bolt Strat - 2-3/16" at widest x 3" long x 5/8" deep
Bridges:
Hardtail modern narrow 2-1/16"
• Gotoh GTC101/102
• Gotoh GTC101/102
• Hipshot Fixed Bridge 41060C .125" floor
• Callaham Am. Std. Hardtail 3 or 6 saddle narrow bridge
Vibrato Non-Locking (aka Tremolo):
• std 6 screw wide 2-7/32" wide mount
• Gotoh 510 2 post
• Hipshot Contour 2 post
Pickups: HH, HSH, or HSS Direct; 2 x Soapbar
Controls: Rear Rout with recesses for short shaft/level components
• BVT - Blade + 2 pots
• BVTX - Blade + 3 pots
• MC2 - 2 Pots + lower Toggle
Jack: 7/8" side
Contours: Maching front and back bevels (standard) ~or~ 'S' style forearm and gut contours with 3/8" edge radius
Heel: standard square for neck plate

• Top mount jack with some control layouts
• SSS, 'Tron, Mini-humbucker/Firebird pickups
• no flange S pickups
• Ring Mount Short leg humbucker rout
