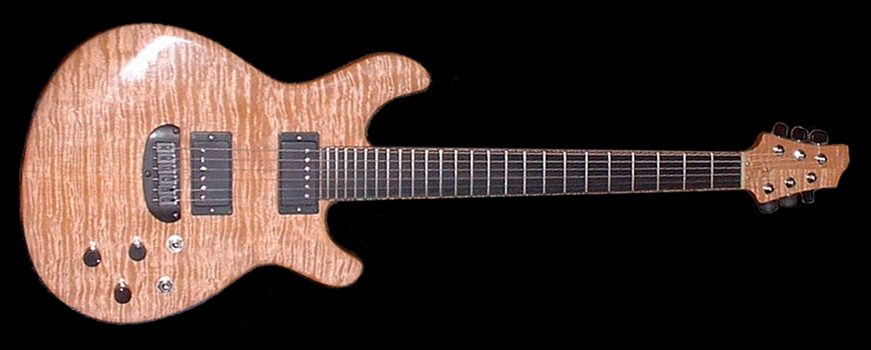

built 2003 | refinished and converted to humbuckers 2004
back in the early 2000's before the current offset revival took hold, I drew up several compact assymetrical and offset designs. The goal was to build a more ergonomic contoured 24 fret body shape that balanced well sitting or standing, and better addressed neck dive on chambered bodies. This shape is a great middle ground to traditional double cutaways and radically offset shapes.

Neck:
• 3 pc Quartersawn Genuine Mahogany Neck w- W. African Ebony fretboard
• 4A Western Flamed Maple headcap and binding matched to body
• Asymmetric C profile .840 @1st to .940" @15th
• 1.700" nut width 2.32" width at last fret
• 12" radius
• 25" scale / 24 frets Stew-Mac #149 - .095" x .045"
• LMI US made two way Truss Rod
• 2 pc graphite neck reinforcement
• No top inlay and ebony side dots
• oversize hele inserts for 1/4-20 neck bolts • Gloss Headstock and Satin Nitrocellulose Lacquer finish

Body:
• 4A Western Flamed Maple 3/16" thick top bent over forearm contour
• Gloss Nitrocellulose Lacquer finish w- satin back
• 1 pc Genuine Mahogany with matched rear control cover
• "Swiss Cheese" Chambers
• Contoured Bolt-On Heel
• Forearm contour and gut carve
• 18-1/2" tall x 12-3/4" wide x 1-3/4" thick total

Electronics:
• Neck Pickup: Gibson 490-R w-custom black cover
• Bridge pickup: Gibson 490-T w-custom black cover
• Graphtech piezo bridge pickup • FAAS (Ghost) Preamp • Magnetic-Mix-Piezo 3 way toggle • 500K CTS Magnetic Master Volume
• 500K Alpha Push-Oull Master Tone for middle position Half-Out-of-phase
• All Parts 4PDT 3-Way toggle
• Switchcraft stereo switched jack with Aluminum side Jackplate
• Ebony knobs wih pearl indicator inlay

Hardware:
• Custom Ebony Hardtail bridge 2.22" E to E spacing
• custom Ebony rear string through block
• Schaller 16:1 locking Tuners w- Ebony knobs
• Schaller Strap-lok compatible buttons
